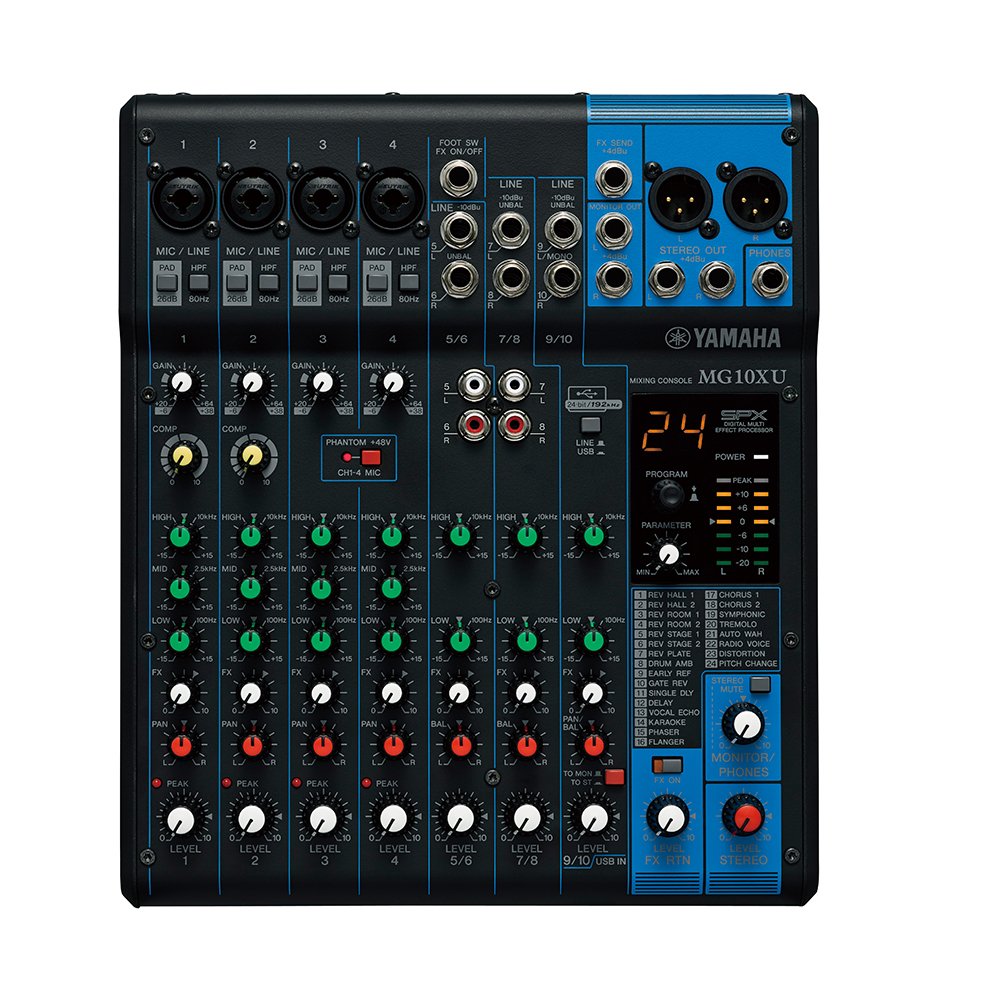

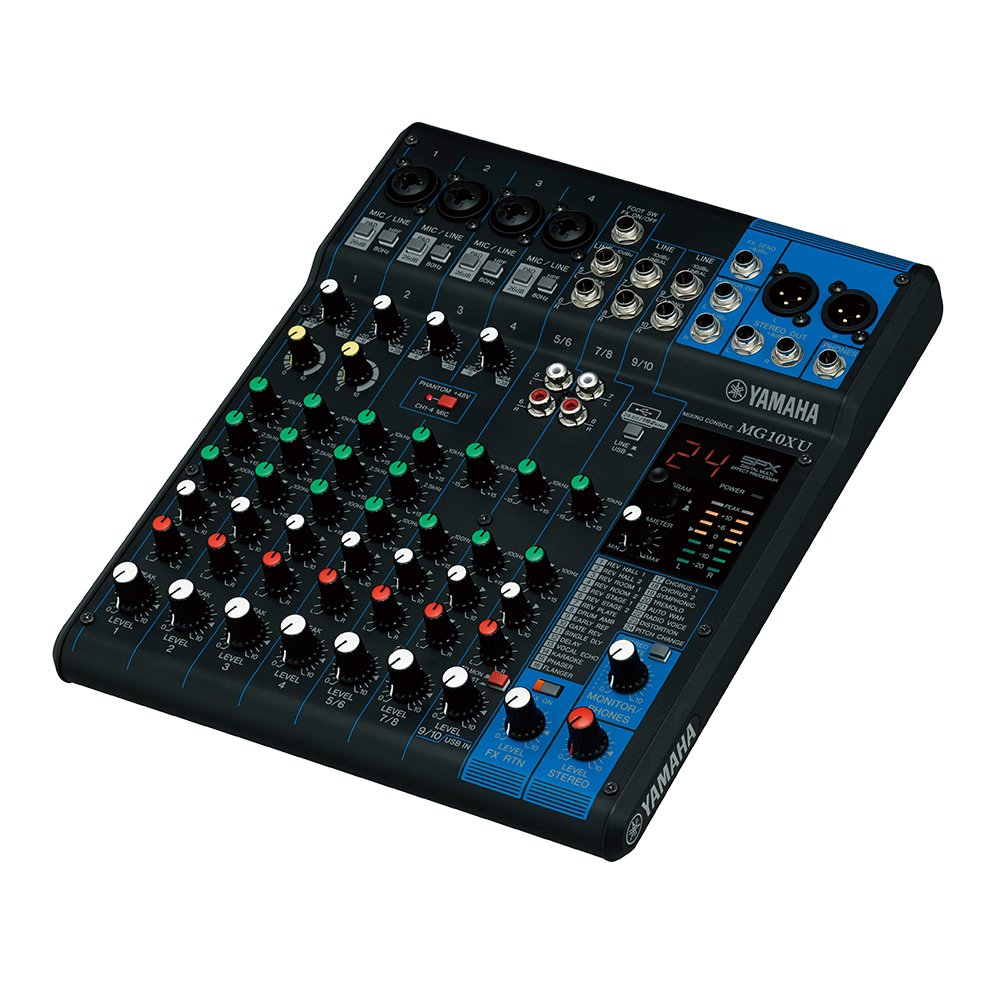

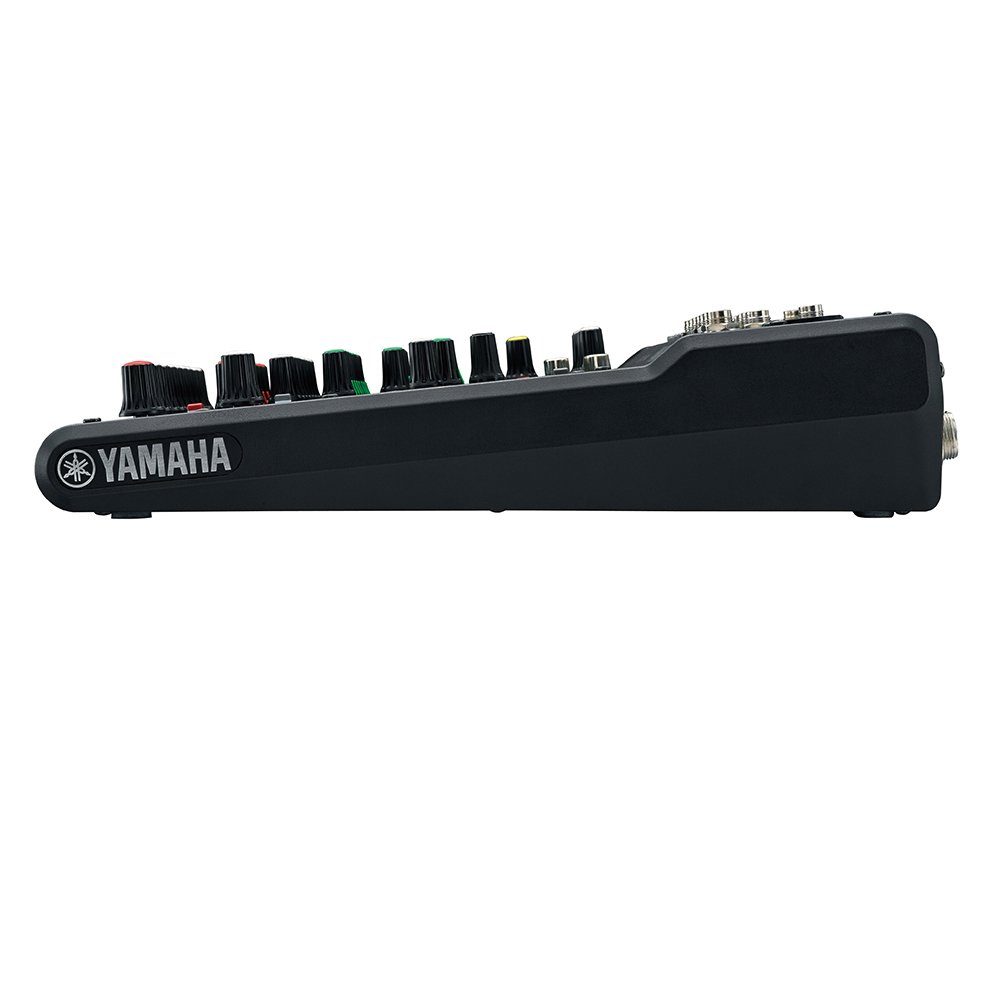

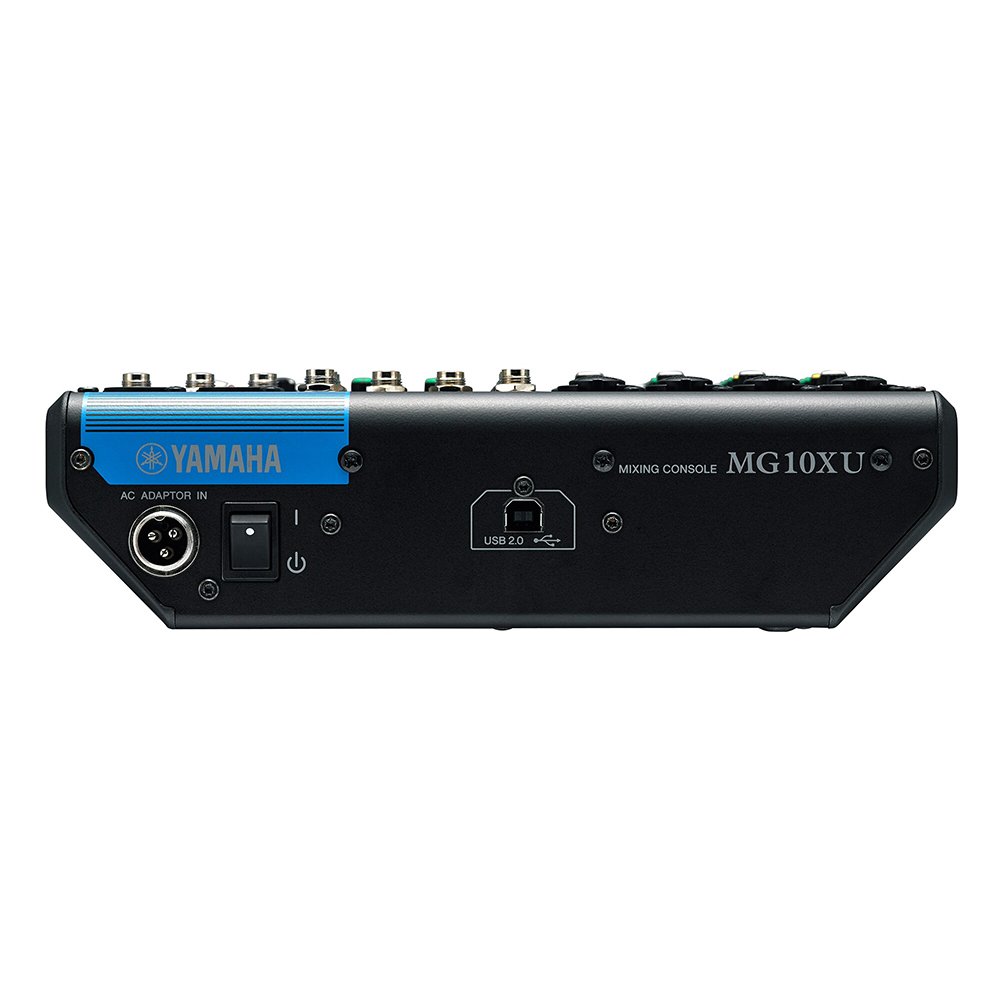

MG10XU
MG10XU is available for B2B wholesale and sourcing through YH Audio. For an accurate quotation, confirm the required function or configuration, material/build requirements, quantity, destination market and target price level. Existing product note: MG10XU Mixing Console
MG10XU
0-Channel Mixing Console: Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX)
- 10-Channel Mixing Console
- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit / 192kHz 2in / 2out USB Audio functions
- Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Includes Cubase AI DAW software download version
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Metal chassis
- Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6″x 2.8″x 11.6″)
- Net Weight: 2.1 kg (4.63 lbs.)
Applications content is being prepared.
Q&A
How many microphones can I connect to the MG10XU at the same time?
The MG10XU provides 4 true microphone inputs with individual XLR connectors featuring D-PRE preamps. It also supports additional line sources via stereo inputs but only 4 inputs are designed for microphones.
Does the MG10XU support USB recording and playback?
Yes, the MG10XU has a 2-in/2-out USB audio interface at 24-bit/192kHz, enabling connection to computers and iPads for both recording and playback via supported DAW software like Cubase AI included with the mixer.
Is the MG10XU a powered mixer? Can I connect passive speakers directly?
The MG10XU is an unpowered, analogue mixer requiring connection to powered speakers or an external amplifier for passive speakers. It does not include a built-in power amplifier.
How many true XLR microphone preamps does the MG10XU provide?
The MG10XU offers 4 true XLR microphone preamps with high-quality D-PRE inverted Darlington circuitry, providing low noise and sturdy gain suitable for professional audio applications.
What are the key DSP and compressor features included in the MG10XU?
MG10XU features built-in SPX digital effects with 24 program presets and one-knob compressors on the microphone channels, simplifying audio processing for live and studio use without requiring external units.
