MG16XU
MG16XU is available for B2B wholesale and sourcing through YH Audio. For an accurate quotation, confirm the required function or configuration, material/build requirements, quantity, destination market and target price level. Existing product note: MG16XU Mixing Console

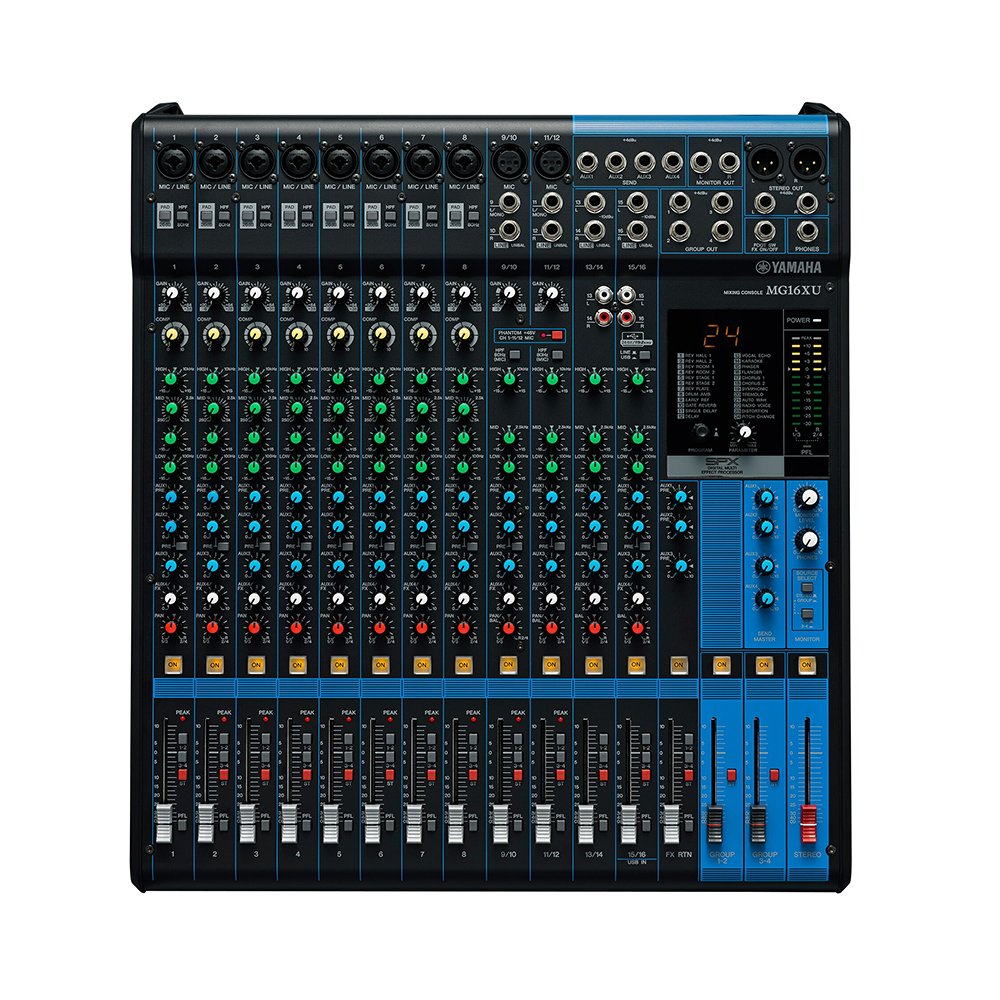

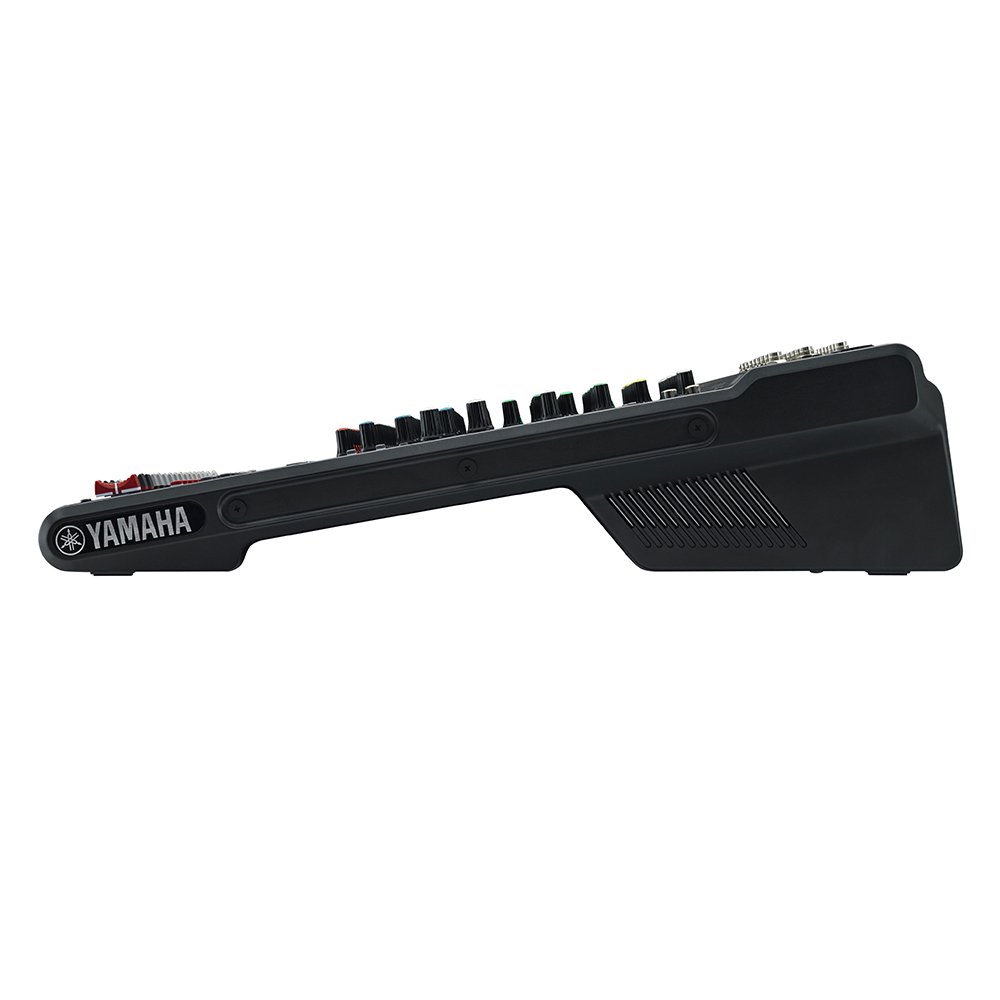

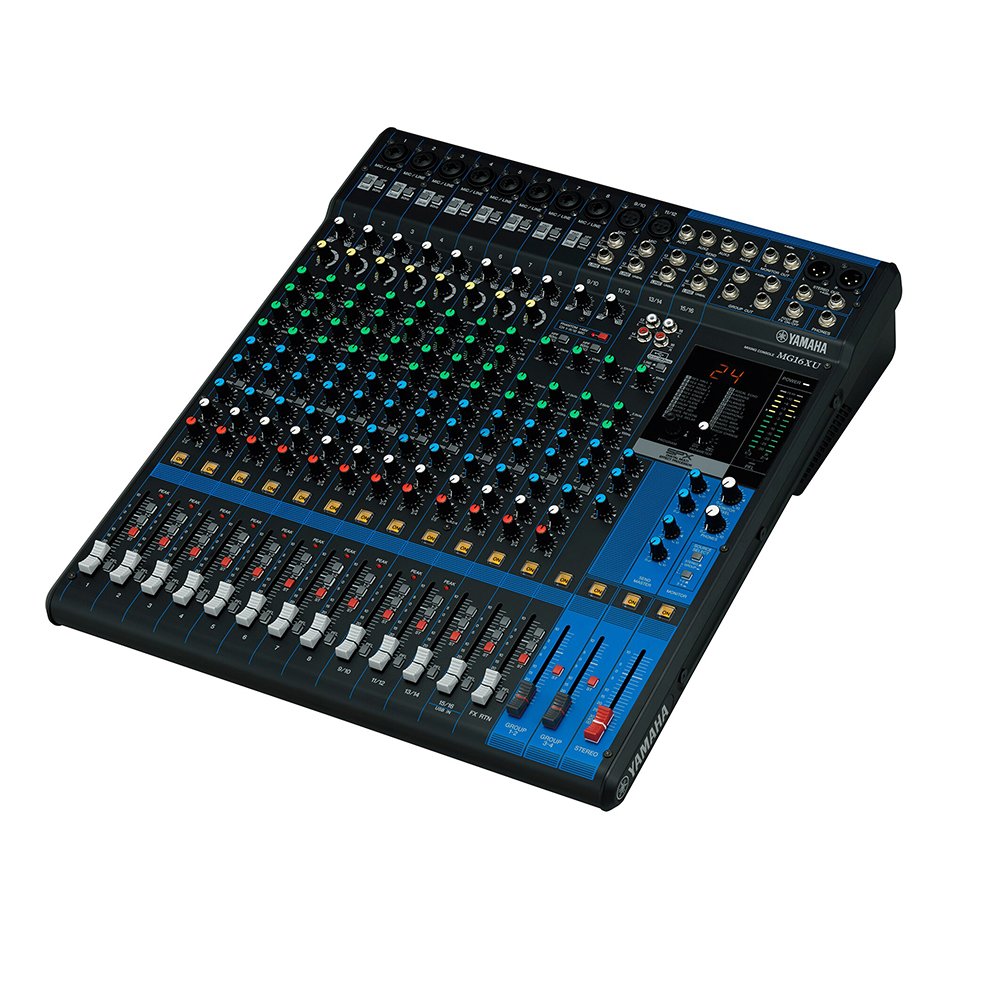

MG16XU Mixing Console
16-Channel Mixing Console: Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)
- 16-Channel Mixing Console
- Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
- 4 GROUP Buses + 1 Stereo Bus
- 4 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit/192kHz 2in/2out USB Audio functions
- Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Includes Cubase AI DAW software download version
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Rack Mount Kit Included
- Metal chassis
- Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5″ x 5.1″ x 19.7″)
- Net Weight: 6.8 kg (15.0 lbs.)
Applications content is being prepared.
Q&A
How many microphones can I connect to the MG16XU at the same time?
The MG16XU supports up to 10 microphone inputs: 8 mono channels with mic preamps plus 2 stereo channels that can support mic inputs as needed. This makes it ideal for medium-sized live bands or event setups with multiple vocalists and instruments.
Can I record audio to a computer using the MG16XU's USB connection?
Yes, the MG16XU features a 24-bit/192kHz 2-in/2-out USB audio interface that allows direct recording to and playback from a computer. It also supports connection with an iPad via Apple’s USB Camera Connection Kit, but you should confirm compatibility with your device and software.
Does the MG16XU mixer have built-in effects like reverb or delay for live vocals?
Yes, it includes Yamaha’s SPX digital effects with 24 programs such as reverb, delay, and chorus, plus 1-knob compressors on mic channels. These provide convenient sound enhancement suitable for live performances without the need for additional external processors.
How many true XLR microphone preamps does the MG16XU provide?
The MG16XU offers 10 true mic preamps: 8 mono channels each with an XLR input and 2 stereo channels that include balanced line inputs, some of which can accommodate mics. This is an important distinction when specifying the model for professional uses.
Is the MG16XU mixer powered or unpowered, and what amplifier options are recommended?
The MG16XU is an unpowered mixing console, meaning it does not have an internal power amplifier. Buyers must use external amplifiers or powered speakers to drive passive speaker systems.
